Collaborative mobile robots (February 2026)

Modular research and development platform for
collaborative mobile robotics and
human-robot interaction

Go to shop

Mobile base for a collaborative mobile manipulator

Model
2-active-2-passive wheel configuration
4-active wheel configuration
2-active-2-passive wheel configuration4-active wheel configuration (standard)
Drives
2 active drives (KELO drive 100)■■
+ 2 passive swivel wheels■■
4 active drives (KELO drive 100)■■■■
Maneuverability
omni-directional (holonomic)
Compliance to external forces
active and passive
Configurability
can be easily reconfigured to other vehicle geometries
Expandability
can be easily expanded and combined with other bricks or aluminum system profiles
Onboard CPU
high computational power and memory - Ubuntu OS, ROS & KELO Tulip pre-installed
Power supply
master battery 512 Wh with power management unit
Battery runtime
approx. 4 hrs
Payload
400 kg
Max velocity
2 m/s
Footprint
705 mm x 470 mm x 275 mm

Manufacturer: KELO Robotics

More configs

Universal Robots collaborative robot arms

Model

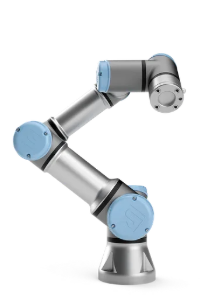

UR3e

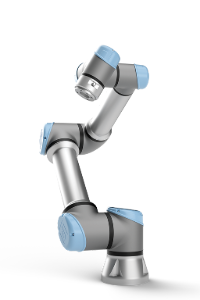

UR5e

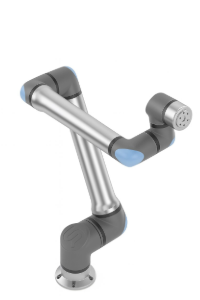

UR8 Long
DOF
6
6
6
Payload
3 kg
5 kg
10 kg
Weight
11.2 kg
20.6 kg
44.7 kg
Reach
500 mm
850 mm
1750 mm
Pose repeatability
per ISO 9283
0.03 mm
0.03 mm
0.08 mm
Control box
OEM control box

ROBILE and UFACTORY Cobots

Four-wheel configuration with dual UFACTORY xArm6

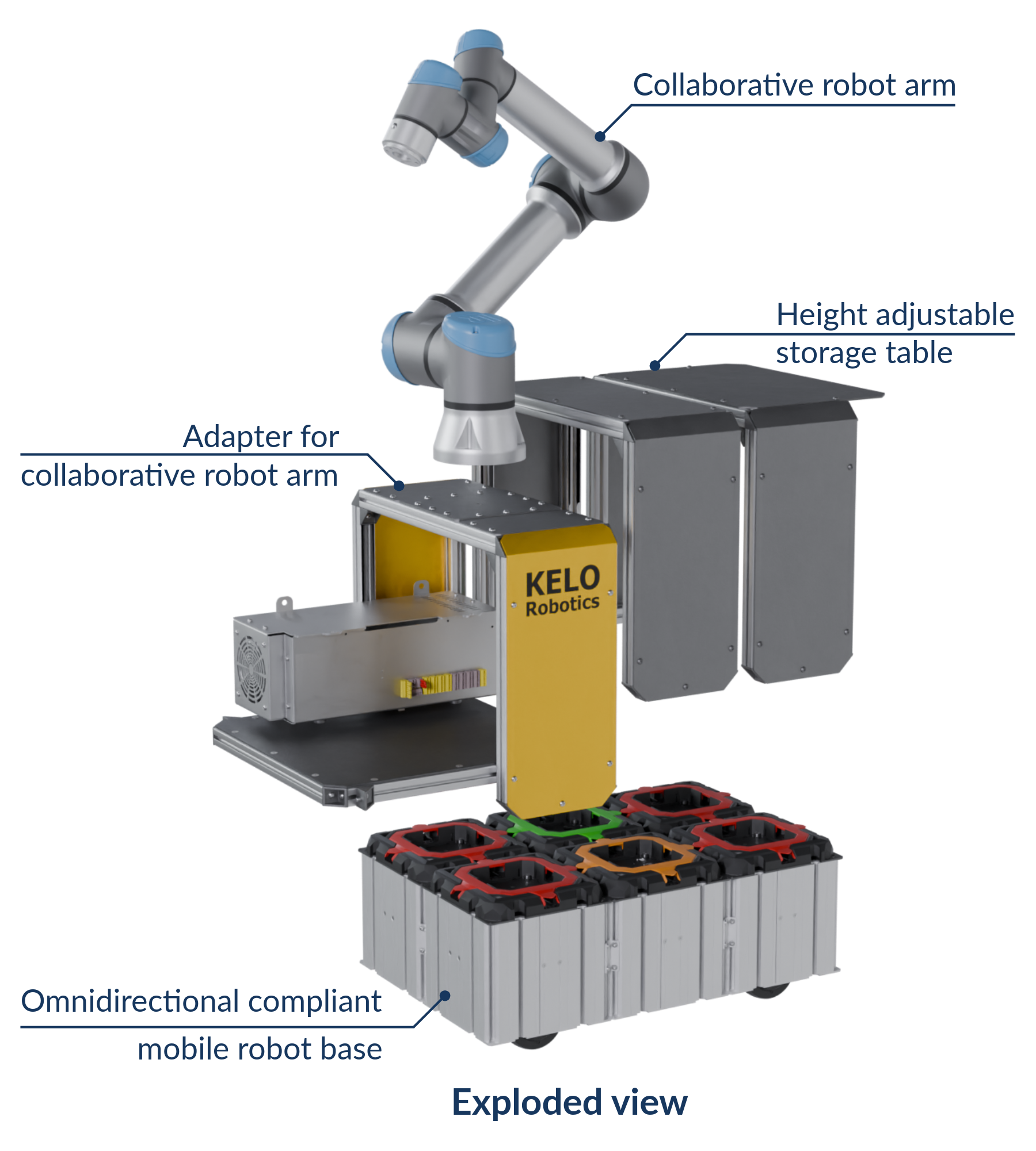

Extensions

Bridge | Specifications
Frame made from standard aluminum profile
Height-adjustable
Easy mounting
Bridge cover | Choices
Storage table with rubber pad
Mounting plate for sensor
Arm adapter | Specifications
Height-adjustable bridge enforced by a steel plate for mounting arm
Power adapter for controller box
Height-adjustable tray holding the controller box.
See more

Configurations of collaborative mobile manipulators

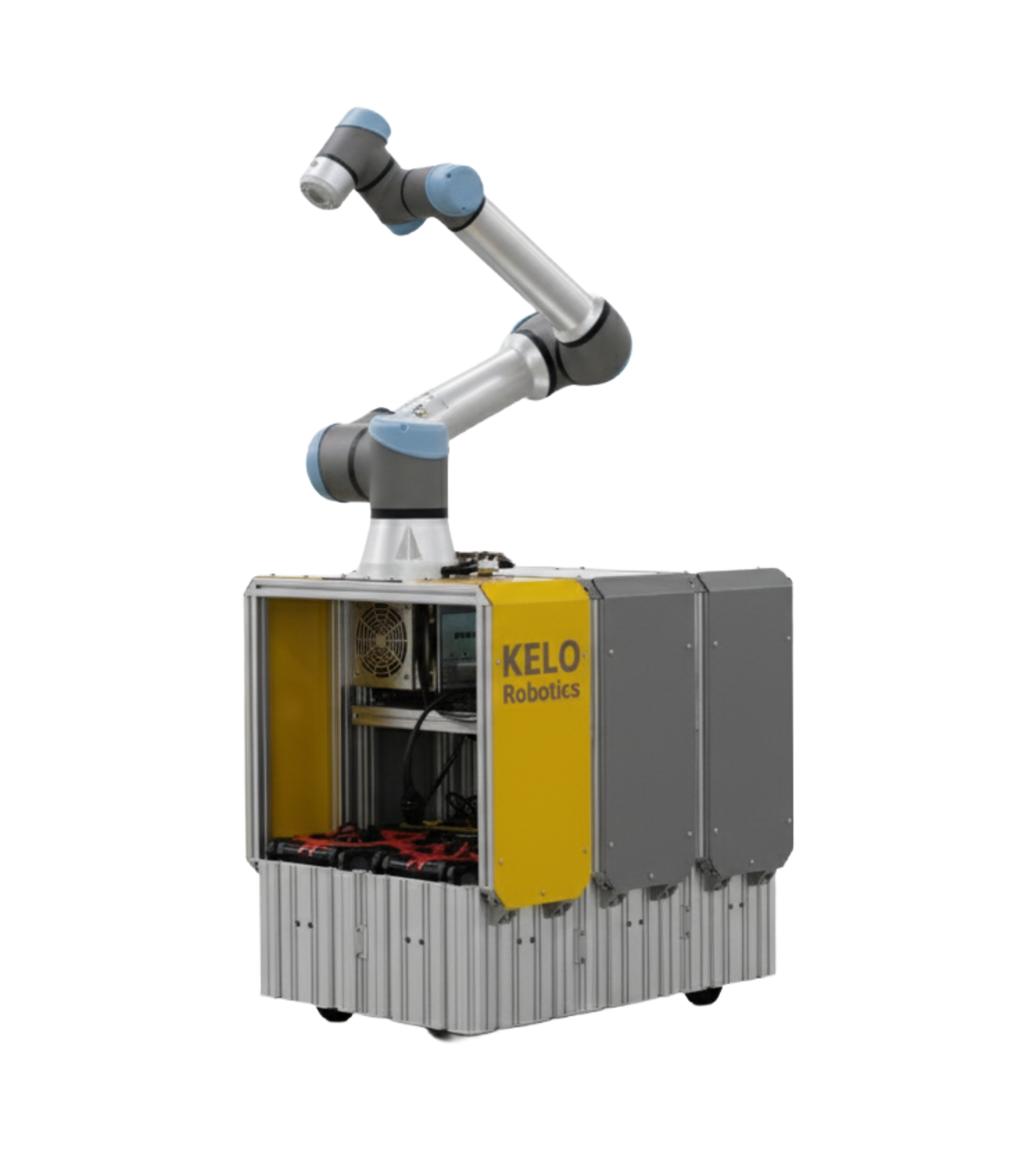

Single arm collaborative mobile robot
Dual arm collaborative mobile robot
single arm ur
dual arm ur
Standard configuration with 4 active wheels or configuration with 2 active and 2 passive wheels (4 active drives)
Collaborative robot arms from Universal Robots
Omnidirectional (holonomic)
Active and passive compliance of base
Can be easily expanded with other KELO ROBILE bricks and standard aluminum profiles
Grippers, force-torque sensor on wrist, cameras for active sensing, other tools
Note: The offered integrated system comes without an end effector. Please contact us for specific requests.
The ROBILE and arm are mechanically and electrically integrated.
The arm control box communication port is connected to the ROBILE PC.

Integrator: KELO Robotics

Configure

Mobile manipulator variations

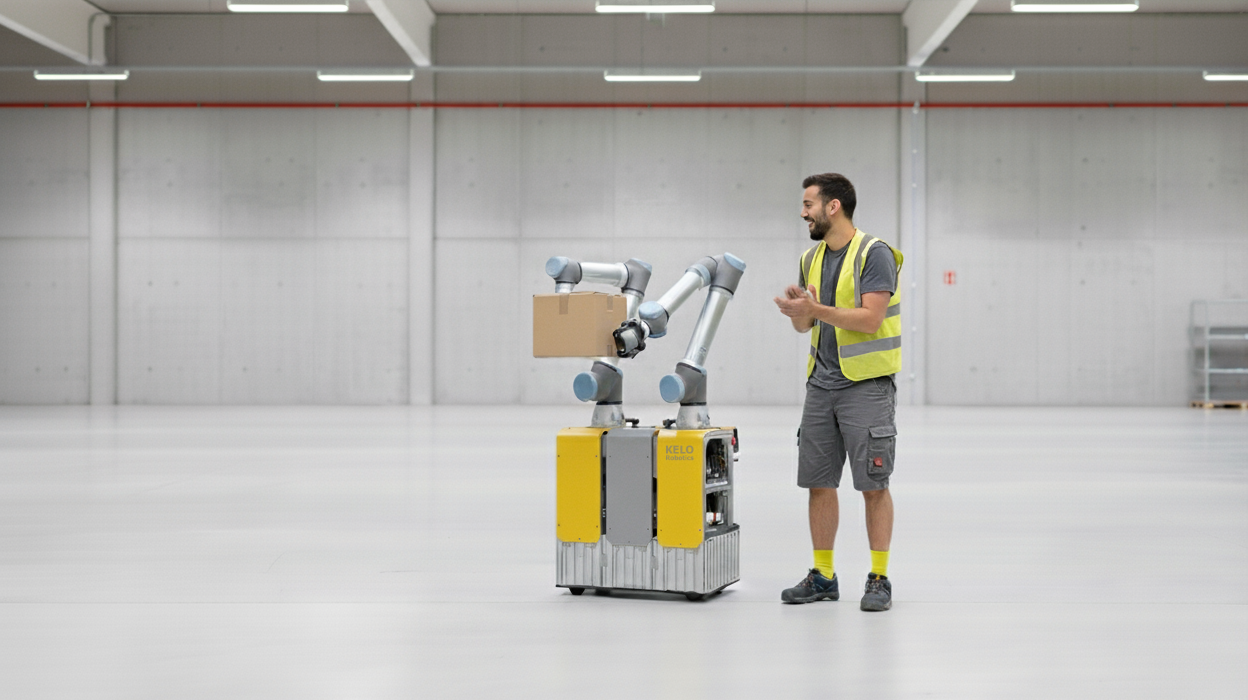

Worker claps for ROBILE with dual UR
Four-wheel configuration with dual UR5e arms
ROBILE mobile platform with UR8 Long
Four-wheel configuration with a single UR8 Long arm

Software

Open source (ROS-based)

All software is available for ROS1 and ROS2

KELO Tulip

  • Velocity-based platform controller
  • Standard cmd_vel interface
  • Configurable for any number of KELO Drives

ROS Navigation (NAV2 Stack)

  • Robot navigation with global and local path planning
  • Obstacle avoidance
  • Tutorial for usage with ROBILE platforms

ROS2 MoveIt (vendor-specific)

  • Motion planning for manipulators
  • Inverse kinematics, control and collision avoidance
  • Tutorial for usage of collaborative robot (see manufacturer’s manual)

ROBILE Simulation (ROS2 version is currently being tested)

  • Models for Gazebo simulator
  • Simulation of any ROBILE Brick configuration
  • Visualizations in RViz

Proprietary software

Force-torque-based controller for compliant motion of mobile base

  • Configurable for any number of KELO Drives
  • Compatible with standard ROS cmd_vel interface

Our products

We have implemented the platform concept in a number of off-the-shelve robots. We use similar or identical component across different models of mobile robots each serving a specific task. The robots themselves can be easily scaled and adapted to the needs of customers in terms of payload,
vehicle geometry, or design.

Our robots can operate in two modes: They can either operate fully autonomously or interactively support human workers in accomplishing their tasks.

  • They operate autonomously and transport loads as long as there is no interaction with a human worker.
  • When they approach a human or an obstacle they reduce their speed AND their kinetic energy and then keep moving at a kinetic energy level, which cannot cause any harm or damage.
  • When a contact is established by a human worker for example by grasping a haptic interface the robots go in an interactive operation mode. In this mode they can be arbitrarily pushed back or moved around with a minimal amount of force.
  • On the press of a button they go back into autonomous mode and continue executing their task.
