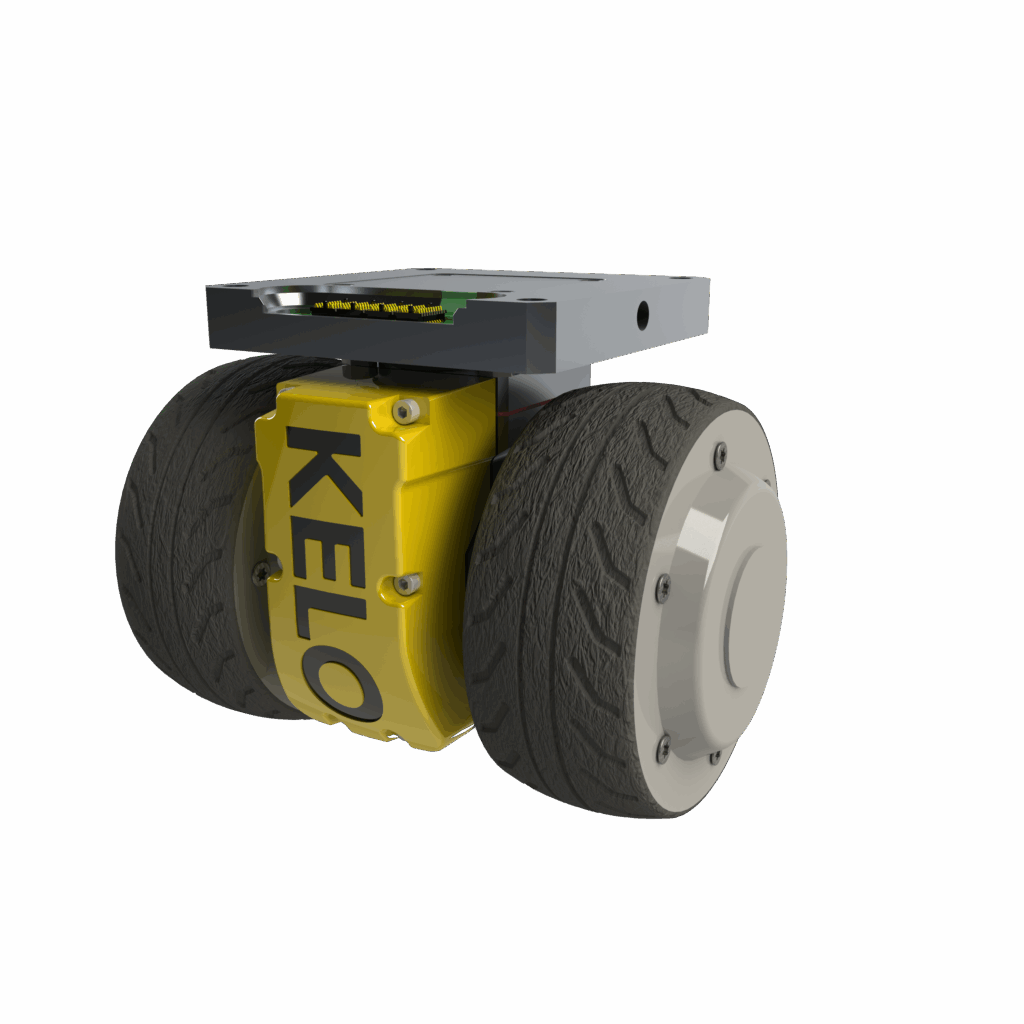

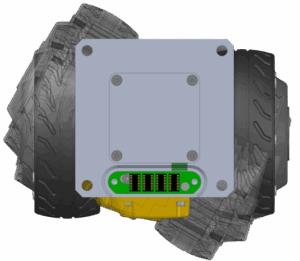

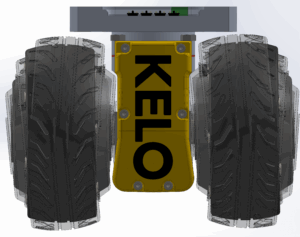

KELO drive KD 100x

KELO drive KD 100x
Integrated suspension
Continuous 360° rotation
General specifications (Variants: 24 V | 48 V)
Power200 W | 400 W
Rated torque5 Nm | 8 Nm
Peak torque10 Nm | 20 Nm
Velocity range0-2 m/s
Motor typeGearless EC motor – backdrivable
Kinematicsdifferentially driven twin-wheels
Software compatibilityKELO TULIP, various EtherCAT master software stacks
Firmware updateVia EtherCAT

Mechanical specifications
Payload125 Kg
Weight4.8 Kg
Protection classIP54 overall – IP65 electronics
Tire materialRubber / Polyurethane (PU)
Hub motorØ 107 mm | 111 mm
Suspension system±4.75° (7.5 mm vertical) movement with integrated rubber damper in the drive
Rotation axisContinuous 360° rotation without mechanical limit – 10 mm off-axis wheel for enhanced stability and backdrivability

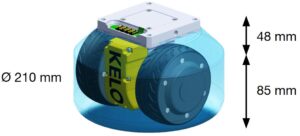

Space requirementCylindrical part: Ø 210 mm × 133 mm, top 48 mm chamfered
measurements_KD100x

Safety
Input signal2xOSSD, FSoE(1)
Standard safety functions (1)STO, SS1 according to SIL2 PLd

Electrical specifications
Power supply24 VDC | 48 VDC (Max.: 32 V | 65 V)
Controller features
ModesVelocity control / Current (torque) control
ControllerFOC / PID
Loop frequencyCommand Frequency: 1 kHz | Inner Loop Frequency: 20 kHz (current/velocity control)
Communication interface
EtherCATEtherCAT Slave, FSoE (1)
CANCAN over EtherCAT (CoE) – DS402
OSSD2x OSSD signals
Inputs
Velocity command (In velocity mode)Each hub motor: 0–2 m/s command with 5 mm/s resolution
Current command (In current mode)Each hub motor: max. 16 A with 0.01 A resolution.
Velocity limit (In current mode)Each hub motor: 0–2 m/s command with 5 mm/s resolution
Current limit (In velocity mode)Each hub motor: max. 16 A with 0.01 A resolution.
E-Stop2x OSSD signals, FSoE (1)
Outputs
Velocity dataEach hub motor: 1 mm/s resolution
Rotation axis: 0.001 °/s resolution
Position dataEach hub motor: 0.1 ° resolution
Rotation axis: Absolute position with 0.001 ° resolution
Current dataEach hub motor: 0.01 A resolution
Drive current consumption: 0.01 A resolution
Voltage dataDrive input Voltage: 0.02 V resolution
Additional dataE-Stop, temperature, warnings, errors, timestamps, etc. (please refer to the datasheet).
Connector
KELO EasyConntect

(1) Available on safety certified versions
