KELO Drives

Your path to omnidirectional robot mobility

Our KELO drives are highly compact, self-contained units that can be mounted to a vehicle frame at arbitrary positions using just four screws and two cables. The KELO Drive family forms the core of our highly modular, configurable, customizable, maintainable, and cost-effective platform concept for professional mobile service robots.

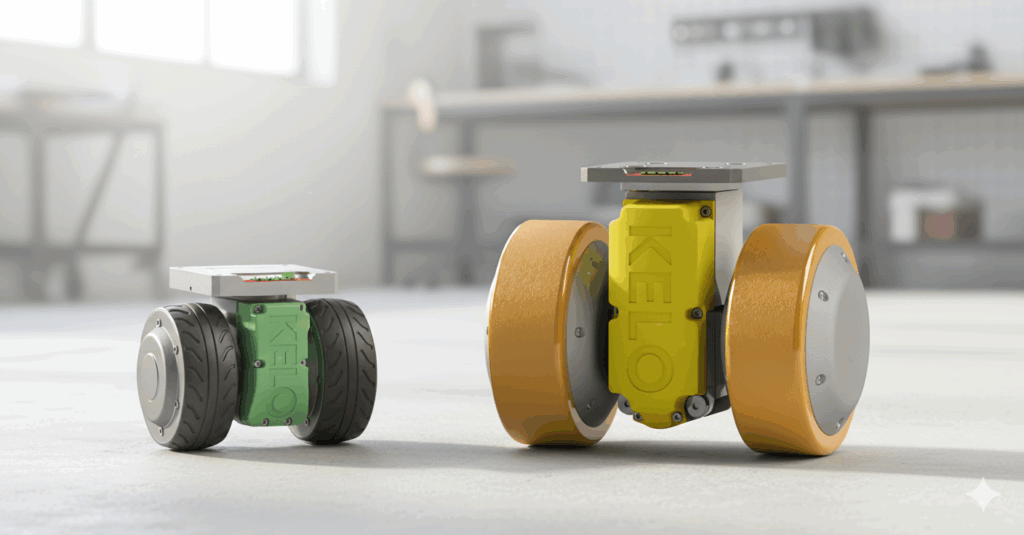

KELO drives

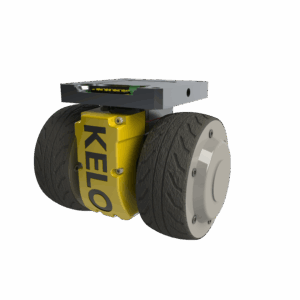

KD 100x

Variants: 24 V | 48 V

Payload: 125 Kg

Rated torque: 5 Nm | 8 Nm

Peak torque: 10 Nm | 20 Nm

Hub motor: Ø 107 mm | 111 mm

Read more

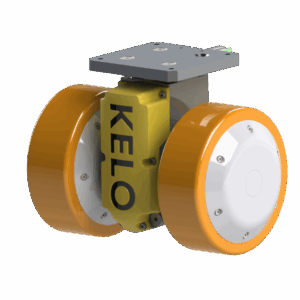

KD 165x

Variants: Only one

Payload: 500 Kg

Rated torque: 30 Nm

Peak torque: 60 Nm

Hub motor: Ø 165 mm

Read more

KELO drives enable ...

transportation of heavy loads

  • Payload of KD 165X: 500 kg

  • Drives can be positioned arbitrarily under the frame that carries the heavy, bulky load.

  • For a cost-efficient solution, KELO drives can be combined with passive wheels.

omnidirectional mobility

  • Limited floor space is a key design consideration for mobile logistics robots.
  • KELO drives give designers greater freedom to develop solutions for confined spaces.
  • Their robust suspension enables reliable operation on uneven ground.
  • KELO drives help designers overcome the limitations of conventional omnidirectional drive concepts.

design for application

  • In future manufacturing concepts, self-organizing work cells are a key element.
  • KELO drives can transform application-specific work cells into mobile work cells: simply attach the KELO drives to the work cell to make it mobile.
  • This frees designers from designing around robot mobility, allowing them to focus on the application and work-cell requirements.

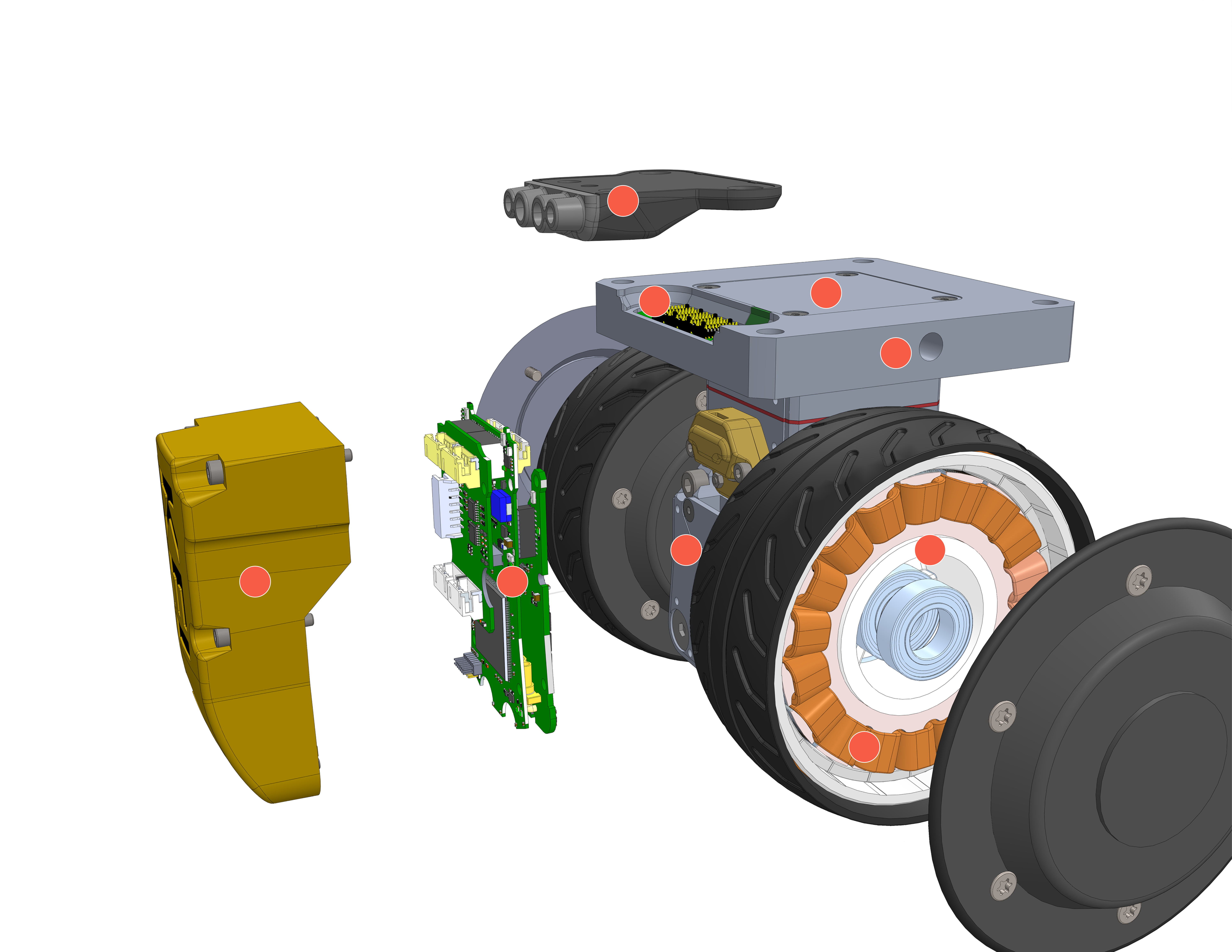

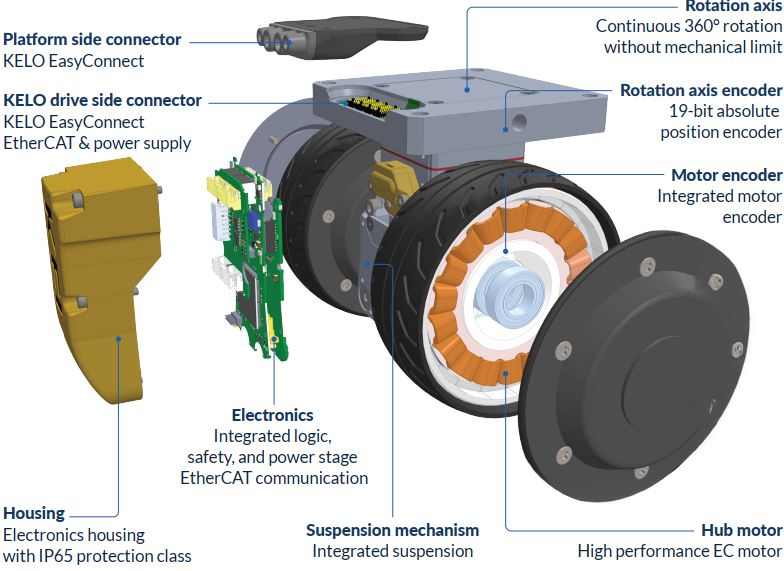

KELO drive exploded view

Hover over the image to see different parts of the KELO drive (marked by orange circles).  Click on the circle markers to learn more.

Rotation axis KELO drive side connector Housing Electronics Suspension mechanism Hub motor Motor encoder Rotation axis encoder Platform side connector

Rotation axis

Continuous 360° rotation without mechanical limit

KELO drive side connector

KELO EasyConnect
EtherCAT & power supply

Housing

Electronics housing with IP65 protection class

Electronics

Integrated logic, safety, and power stage
EtherCAT communication

Suspension mechanism

Integrated suspension

Hub motor

High performance EC motor

Motor encoder

Integrated motor encoder

Rotation axis encoder

19-bit absolute position encoder

Platform side connector

KELO EasyConnect

KELO drives: easy to use

KELO EasyConnect

Easy integration & maintenance:

Place platform-side connector on the robot

Attach or detach KELO drive with only four screws (handling mechanical, power, and data connections simultaneously)

KELO Tulip

Easy integration of KELO drives software:

Enter the position of the wheels into a configuration file.

The confi file is then used to translate the intended velocity of the robot platform into the velocities of the drives.

Contact us: info (at) kelo-robotics (dot) com

Download flyer

Our products

We have implemented the platform concept in a number of off-the-shelve robots. We use similar or identical component across different models of mobile robots each serving a specific task. The robots themselves can be easily scaled and adapted to the needs of customers in terms of payload,
vehicle geometry, or design.

Our robots can operate in two modes: They can either operate fully autonomously or interactively support human workers in accomplishing their tasks.

  • They operate autonomously and transport loads as long as there is no interaction with a human worker.
  • When they approach a human or an obstacle they reduce their speed AND their kinetic energy and then keep moving at a kinetic energy level, which cannot cause any harm or damage.
  • When a contact is established by a human worker for example by grasping a haptic interface the robots go in an interactive operation mode. In this mode they can be arbitrarily pushed back or moved around with a minimal amount of force.
  • On the press of a button they go back into autonomous mode and continue executing their task.
